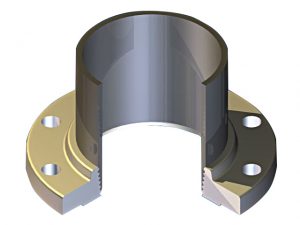

Threaded flanges are also called NPT flanges/matching flanges. The inner diameter of the threaded flange contains a NPT internal thread, which is used to connect to the NPT external threaded pipe. The biggest advantage is that it can be connected without welding and is convenient for installation. In addition to the standard NPT form specified by the ASME B16.5 code, other thread forms can also be customized according to customer requirements.

The three most common end-face connection forms of threaded flanges are usually matched with related mating flanges. Including raised face, flat face or RTJ face seal. Raised face and flat face are usually used in medium and low pressure pipeline applications. RTJ is the first choice for high pressure pipeline applications. The standard height of threaded flanges below 400# is 1/16″. The standard height of threaded flanges below 400# is 1/4″.

Looking for sealing surface size?

click here -> Alternate Flange Facings

Yanhao Flange produces pipe flanges of all steel material grades, including carbon steel socket welding flanges, stainless steel socket welding flanges and alloy steel socket welding flanges. At the same time, we provide you with ASME/ANSI B16.5 socket welding flange dimensions and a separate page in PDF format.

Looking for threaded flange size?

click here -> threaded flange size

In addition, we also have a size repository for JIS flanges, DIN flanges and other flange specifications. At the same time, we support customized flanges with drawings. If necessary, we can provide you with them.
