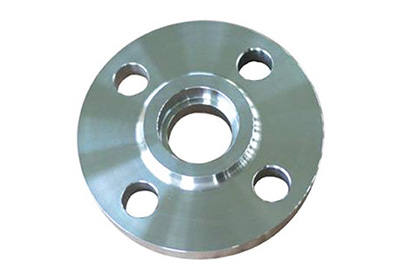

A182 F304L socket welded flange

A182 F304L socket welded flange

type

materialASTM A182 F304L

You are most welcome to reach us at +86 15303178205 or sales@flangeschina.com !

Pipe Normal Diam. O.D. Flange  Thk. Of Flange Min  Diam.
of
Hub
Diameter of Raised Face  Length Hub.Y Bore  Depth
of
Socket.D
Diam.
of Bolt
Circle
Diam.
of Bolt
Holes
Number
of Bolts
Diam. of
Bolts
(inch)
KG LB
inch dn O C X G Y B D BC BH BN BD
1/2″ 15 89.00 11.20 30.20 35.10 15.70 22.40 9.70 60.50 15.80 4 1/2″ 0.4 0.9
3/4″ 20 98.50 12.70 38.10 42.90 15.70 27.70 11.20 69.90 15.80 4 1/2″ 0.7 1.5
1″ 25 108.00 14.20 49.30 50.80 17.50 34.50 12.70 79.30 15.80 4 1/2″ 0.9 2
1-1/4″ 32 117.50 15.70 58.70 63.50 20.60 43.20 14.20 88.90 15.80 4 1/2″ 1.2 2.6
1-1/2″ 40 127.00 17.50 65.00 73.20 22.40 49.50 15.80 98.60 15.80 4 1/2″ 1.5 3.3
2″ 50 152.50 19.10 77.70 91.90 25.40 62.00 17.50 120.70 19.10 4 5/8″ 2.3 5.1
2-1/2″ 65 178.00 22.40 90.40 104.60 28.40 74.70 19.10 139.70 19.10 4 5/8″ 3.7 8.1
3″ 80 190.50 23.90 108.00 127.00 30.20 90.70 20.60 152.40 19.10 4 5/8″ 4.2 9.2
3-1/2″ 90 216.00 23.90 122.20 139.70 31.80 103.40   177.80 19.10 8 5/8″ 5.2 11.4
4″ 100 228.50 23.90 134.90 157.20 33.30 116.10   190.50 19.10 8 5/8″ 5.9 13
5″ 125 254.00 23.90 163.60 185.70 36.60 143.80   215.90 22.40 8 3/4″ 7 15.4
6″ 150 279.50 25.40 192.00 215.90 39.60 170.70   241.30 22.40 8 3/4″ 8.4 18.5
8″ 200 343.00 28.40 246.10 269.70 44.50 221.50   298.50 22.40 8 3/4″ 12.6 27.7
10″ 250 406.50 30.20 304.80 323.90 49.30 276.40   362.00 25.40 12 7/8″ 18 39.6
12″ 300 482.50 31.80 365.30 381.00 55.60 327.20   431.80 25.40 12 7/8″ 29.5 65
14″ 350 533.50 35.10 400.10 412.80 57.20 359.20   476.30 28.50 12 1″ 38 84
16″ 400 597.00 36.60 457.20 469.90 63.50 410.50   539.80 28.50 16 1″ 42 93
18″ 450 635.00 39.60 505.00 533.40 68.30 461.80   577.90 31.80 16 1 1/8″ 54 120
20″ 500 698.50 42.90 558.80 584.20 73.20 513.10   635.00 31.80 20 1 1/8″ 70 155
24″ 600 813.00 47.80 663.40 692.20 82.60 616.00   749.30 35.10 20 1 1/4″ 94 207
